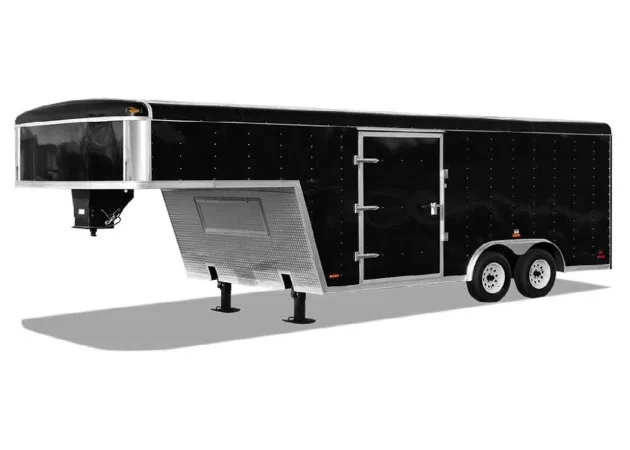

FEATURES & SPECIFICATIONS

  RTTFW &

RTTGN

Series

Torsion Axle

Round Top

Cargo Trailer

Fifth Wheel Model

Shown with optional

Vise Lock on Side Door

A Truck Specification Sheet is Required

From The Dealer.  No Exceptions!

Main Floor Size is 8'-6" Less Than Call Size

 Hitch

Fifth Wheel Models

Adjustable Fifth Wheel Pin Box

Gooseneck Models

2-5/16" Adjustable Gooseneck Coupler

Short Bed Truck Requires 2" Kingpin Sleeve for $175

 Axle

3,500 lb. Torsion Axles on TA2 Models

5,200 lb. Torsion Axles on TA3 & TR52 Models

 Tires and Rims

ST205/75R15C Radial Tires with White Wheels (TA2)

ST225/75R15D Radial Tires with White Wheels (TA3)

 Frame

FloorWallsRoof

TA224" O.C.16" O.C.24" O.C.

TA316" O.C.16" O.C.24" O.C.

TA416" O.C.16" O.C.16" O.C.

Undercoated Frame

 Doors

36" Camlock Door wStep Curb Side (20' - 24')

48" Camlock Door wStep Curb Side (26' & Above)

Double Rear Doors

 Interior

3/4" Advantech Floor

3/8" Plywood Walls

6'-6" Interior Height

 Exterior

.030 Exterior Metal

Fiberglass Cap

ATP Stoneguard With Access Door

Galvanized Steel Roof

Aluminum Fenders

Brite Front Corners

1-1/2" Lower Trim

3" Lower Trim Standard on 5,200 lb. Axles and Up

 Electrical

Breakaway Box, Battery, & Switch

(2) 12-Volt Dome Lights With Switch

7-Way Plug

LED Strip Tail Light/Brake Lights, Surface Mounted

LED 2" Round, Recessed, Clearance Lights

Truck'n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.
