Product Information

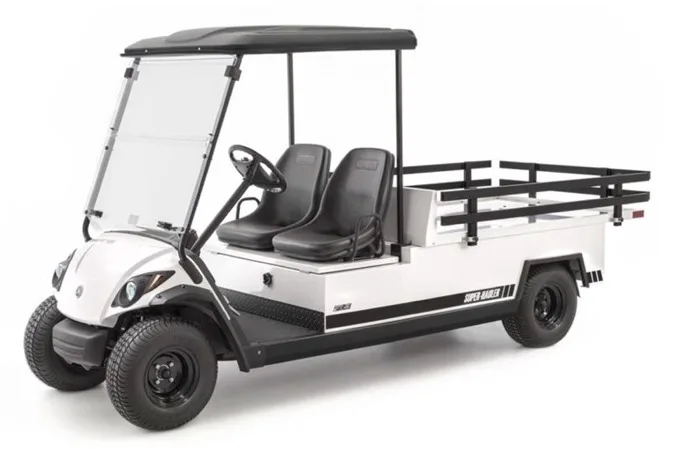

YAMAHA Adventurer Super HaulerĀ - Golf Cart
With a super-size aluminum cargo bed the Yamaha Super Hauler is big enough to handle all your super-sized projects. With standard features like cushioned contoured bucket seats, a floor mounted horn, headlights and tail lights this is one reliable hauler thatāll always be there to save the day.
| Ā |
Ā
Specs
Manufacturer
Ā
Yamaha
Model Year
Ā
2016
Model
Ā
Adventurer Super Hauler (Gas)
Price
Ā Request a QuoteMeasurements
Length
Ā
143 in. (3,632 mm) overall
72 in. (1,829 mm) cargo bed
72 in. (1,829 mm) cargo bed
Height
Ā
71.9 in. (1,826 mm) overall with suntop
7 in. (178 mm) cargo bed
7 in. (178 mm) cargo bed
Width
Ā
53 in. (1,346 mm) overall
48 in. (1,219 mm) cargo bed
48 in. (1,219 mm) cargo bed
Weight
Ā
893 lbs. (405 kg)
Wheelbase
Ā
98.1 in. (2,492 mm)
Ground Clearance
Ā
4.5 in. (114 mm) minimum
Turning Radius
Ā
13.5 ft. (3.4 m)
Engine
Engine
Ā
Yamaha built, low-emission, 1-cylinder, 60Ā° incline, OHV, forced-air cooled
Horsepower
Ā
11.4 hp (8.5 kW) @ 3,500 rpm
Displacement
Ā
357 cc
Bore x Stroke
Ā
85 x 63 mm
Compression Ratio
Ā
8.1:1
Carburetion
Ā
Electronic fuel injection
Ignition
Ā
Battery coil
Air Filter
Ā
2-stage, urethane-foam pre-cleaner and high-capacity pleated paper cartridge
Fuel Tank Capacity
Ā
5.8 gal. (22 l)
Lubrication
Ā
Splash-style positive oil
Drivetrain
Transmission
Ā
Mechanical, 2 rear wheel transaxle
Operational
Steering
Ā
Self-compensating double reduction helical rack-and-pinion, permanently lubricated with sealed bearings and greaseless tie-rod ends
Brakes
Ā
Self-adjusting, mechanical drum
Suspension
Ā
Front: Tru-Trak IIā¢ fully independent automotive-style strut
Rear: Unit swingarm with coil springs over hydraulic shock absorbers
Rear: Unit swingarm with coil springs over hydraulic shock absorbers
Tires
Ā
18.5 x 8.5-8 (6-ply rating)
Front Wheel Tread: 34.3 in. (870 mm)
Rear Wheel Tread: 38.6 in. (980 mm)
Front Wheel Tread: 34.3 in. (870 mm)
Rear Wheel Tread: 38.6 in. (980 mm)
Seating
Ā
Seamless, fabric-backed vinyl bonded to pure, virgin foam contoured seat cushions and mated to a warp and moisture resistant polypropylene bottom, strengthened with plated steel inserts
Speed
Ā
Max Forward: 15 mph (24 km/h)
Max Reverse: 11.4 mph (18.4 km/h)
Max Reverse: 11.4 mph (18.4 km/h)
Frame
Ā
HybriCoreā¢ chassis features a robotic welded automotive ladder-style steel frame mated to a polypropylene structural floor; frame is protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester / urethane powder topcoat
Load Capacity
Ā
Cargo Bed: 800 lbs. (363 kg)
Other
Colors
Ā
Glacier
Specs
Manufacturer
Ā
Yamaha
Model Year
Ā
2016
Model
Ā
Adventurer Super Hauler (Electric)
Price
Ā Request a QuoteMeasurements
Length
Ā
143 in. (3,632 mm) overall
72 in. (1,829 mm) cargo bed
72 in. (1,829 mm) cargo bed
Height
Ā
71.9 in. (1,826 mm) overall with suntop
7 in. (178 mm) cargo bed
7 in. (178 mm) cargo bed
Width
Ā
53 in. (1,346 mm) overallĀ
48 in. (1,219 mm) cargo bed
48 in. (1,219 mm) cargo bed
Weight
Ā
758 lbs. (344 kg) less batteries
Wheelbase
Ā
98.1 in. (2,492 mm)
Ground Clearance
Ā
4.5 in. (114 mm) minimum
Turning Radius
Ā
13.5 ft. (3.4 m)
Engine
Engine
Ā
Hitachi 48V high-efficiency, shunt wound motor with internal solid state tachometer
Horsepower
Ā
3.5 hp (2.6 kW) for 30 minutes
Electrical
Battery
Ā
(6) 8V Trojan T875
Drivetrain
Transmission
Ā
EnduraDriveā¢ direct coupled transaxle equipped with high-precision helical gears
Drive Axle Ratio: 12.49:1
Drive Axle Ratio: 12.49:1
Operational
Steering
Ā
Self-compensating double reduction helical rack-and-pinion, permanently lubricated with sealed bearings and greaseless tie-rod ends
Brakes
Ā
Self-adjusting, mechanical drum
Suspension
Ā
Front: Tru-Trak IIā¢ fully independent automotive-style strut
Rear: Unit swingarm with coil springs over hydraulic shock absorbers
Rear: Unit swingarm with coil springs over hydraulic shock absorbers
Tires
Ā
18.5 x 8.5-8 (6-ply rating)
Front Wheel Tread: 34.3 in. (870 mm)
Rear Wheel Tread: 38.6 in. (980 mm)
Front Wheel Tread: 34.3 in. (870 mm)
Rear Wheel Tread: 38.6 in. (980 mm)
Seating
Ā
Seamless, fabric-backed vinyl bonded to pure, virgin foam contoured seat cushions and mated to a warp and moisture resistant polypropylene bottom, strengthened with plated steel inserts
Speed
Ā
Max Forward: 15 mph (24 km/h)
Max Reverse: 5 mph (8.1 km/h)
Max Reverse: 5 mph (8.1 km/h)
Frame
Ā
HybriCoreā¢ chassis features a robotic welded automotive ladder-style steel frame mated to a polypropylene structural floor; frame is protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester / urethane powder topcoat
Load Capacity
Ā
Cargo Bed: 400 lbs. (181 kg) with standard Hitachi motor and 270A motor control unit
Other
Colors
Ā
Glacier
Options
| Ā | Ā |  Ā Motor Control Unit |
Ā | Ā |
| Ā | Ā | Ā Ā  Ā Solid state DC microprocessor-controlled MOSFET switching |
Ā | Ā |
| Ā | Ā | Ā Ā Ā 400A armature output, 30A field output |
Ā | Ā |
| Ā | Ā | Ā Ā Ā Must be ordered in conjunction with optional GE 48V motor |
Ā | Ā |
| Ā | Ā | Ā Speed Kit |
Ā | Ā |
| Ā | Ā | Ā Ā Ā 19 mph (31 km/h) maximum forward speed |
Ā | Ā |
| Ā | Ā | Ā Ā Ā Only available with standard Hitachi motor and Yamaha built 270A motor control unit |
Ā | Ā |
| Ā | Ā | Ā (8) 6V Trojan T105 batteries |
