American Landmaster - L7 - 4x4 2023 - Side-By-Side 4x4 UTV
American Landmaster - L7 - 4x4 2023 - Side-By-Side 4x4 UTV
STARTING AT
$12,999*
* DESTINATION CHARGE & SETUP FEES EXTRA. FREIGHT SURCHARGE $250
Product Information

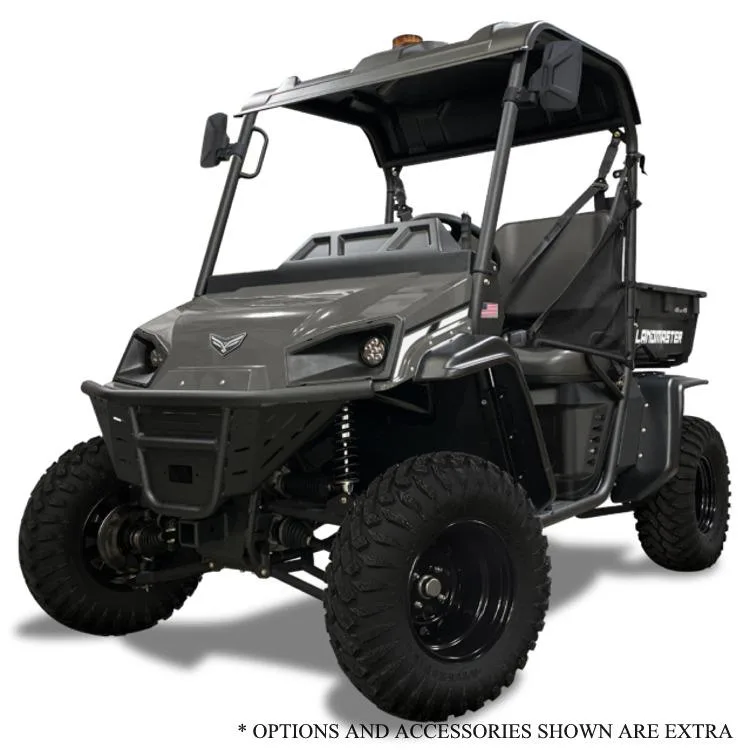

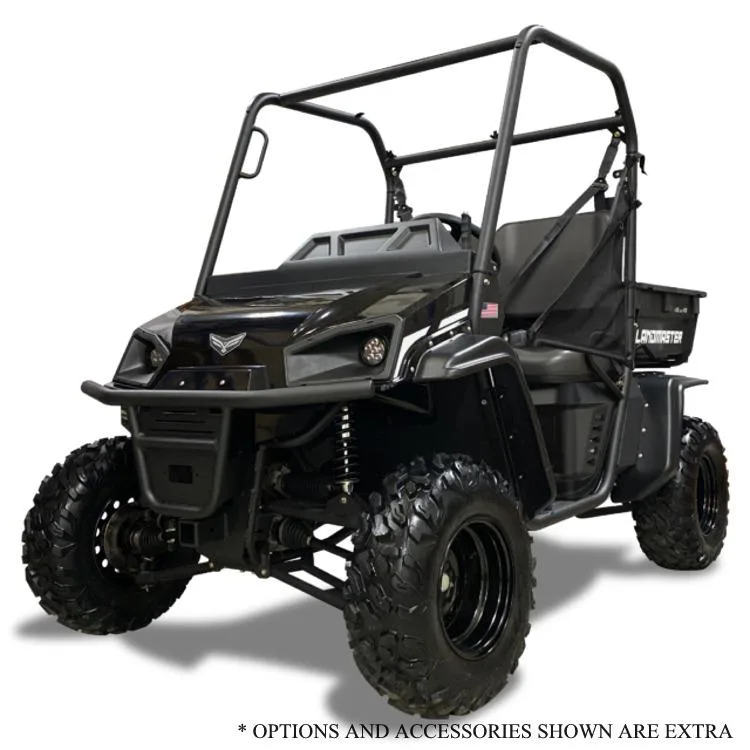

L7 - 4x4 2023
OUR MOST POWERFUL 4X4 UTV
Take home the industry's hardest working, smoothest riding UTV of its class. Designed to be our most versatile UTV for work, adventure, and play. Powered by the Vanguard 627cc engine, this UTV delivers our highest speed and torque.
PRO TIP: The L7 4x4 is perfect for those needing to tackle the toughest jobs. And designed to conquer your outdoor adventures.
OVER 30+ NEW CUSTOMER-INSPIRED FEATURES
SAFETY, SERVICE, RELIABILITY
OVERHEAD BARS ROPS CERTIFIED (Roll-Over Protection System)
1-YEAR FULL BUMPER-TO-BUMPER WARRANTY
BUILT WITH NAME-BRAND AND HIGHLY RELIABLE USA COMPONENTS
EASY ACCESS FOR SERVICEABILITY
WARNING INDICATOR LIGHTS
FULLY SEALED HALF-SHAFT BOOTS & TIE ROD ENDS
HIGH-IMPACT / HIGH-TEMP RESISTANT BUSHINGS
AUTO-GRADE BALL JOINTS
IMPROVED WHEEL HUB AND BEARING
PARKING BRAKE LEVER IMPROVED LOCATION AND INDICATOR LIGHT
WEATHER-SEALED WIRING CONNECTIONS
PERFORMANCE
L-ROSS - LANDMASTER RIDE OPTIMIZED SUSPENSION SYSTEM
4-WHEEL HYDRAULIC DISC BRAKES
IMPROVED RACK AND PINION GEARING
AUTOMOTIVE-QUALITY PLUG & PLAY ELECTRICAL SYSTEM
EFI ENGINE
BEST-IN-CLASS COMFORT, PERFORMANCE, AND CAPABILITY IN YOUR SHOCKS
OVER 8" OF SUSPENSION TRAVEL FOR BOTH FRONT AND REAR SUSPENSIONS
DESIGN
TWO-TONE DESIGN INTERIOR AND EXTERIOR
NEW SIDE SKIRTS AND FENDERS
NEW AGGRESSIVE FRONT-END LOOK
PROTECTED WINCH LOCATION
NEW FLAT ROOF DESIGN
ALL NEW DECALS AND BADGING
ELECTRIC PACKAGES TO FIT YOUR NEEDS
MARINE-GRADE, HIGH-DENSITY FOAM, CONTOURED SEATS
AUTOMOTIVE-GRADE, WATERPROOF, BACK-LIT SWITCHES
EASY GRIP N’ LOCK DRIVE & DIFFERENTIAL LEVER
RIDE EXPERIENCE
QUIETER DRIVING EXPERIENCE
Thanks to an improved muffler, fenders, side skirts, and catalytic converter.VERSATILITY FOR WORK, TRAILS, COMFORT, SPEEDIMPROVED STEERING SYSTEMINDUSTRY-LEADING TURNING RADIUS OF 12ftAUTOMOTIVE-QUALITY PLUG & PLAY ELECTRICAL SYSTEM
SPECIFICATIONS
POWER
18hp | 570cc Commercial-Grade, V-Twin OHV-Technology, Carbureted Vanguard 4-stroke Gas Engine. Superior balance, low vibration, lower emissions, improved valve life, better fuel economy and higher HP/Weight
SPEED
Up to 24 mph**
FUEL CONSUMPTION
Up to 18 mpg**
RANGE
Up to 100 miles**
STARTING
12V keyed ignition with recoil backup
BATTERY
12V / 360 cca utility class
SPARK PLUG
NGK C7HSA
FUEL CAPACITY
5.0 gal
ALTERNATOR
20 amp
TRANSMISSION
CVT automatic
TRANSAXLE
Gear drive Schafer/DANA oil-filled transaxle
DIFFERENTIAL
Cable Actuated Rear-Locking
DRIVE
Switch engaged on demand, 4 wheel drive
FRONT SUSPENSION
Double A-arms, adjustable coilover shock with up to 7" travel
REAR SUSPENSION
Independent trailing arm, with radius rod, adjustable camber & tow control, dual-rate coilover shock with up to 8" of travel
BRAKE SYSTEM
4 wheel disk, hydraulic brake
TIRES
25 x 8 - 12 (front) 25 x 10 - 12 (rear)
DIMENSIONS
95” L x 59” W x 76” H
WHEEL BASE
73”
TURNING RADIUS
12’ inside radius
CURB WEIGHT
1200 lbs.
BED MATERIAL
Structural foam “Poly Bed” with stake pockets
BED DIMENSIONS
35.25” L x 41.5” W x 11” D
GROUND CLEARANCE
11"
*BED CAPACITY
Poly - 9 cu.ft. / Steel - 11 cu.ft. / L-ROSS - 500 lbs. / HD L-ROSS - 700 lbs.
TOWING CAPACITY
1500 lbs.
TOTAL CAPACITY
L-ROSS - 900 lbs. / HD L-ROSS - 1,100 lbs.
WARRANTY
3-year engine / All other 1-year limited
ADDITIONAL FEATURES
3pt lap/shoulder belts for driver and passenger, twin 12V auxiliary outlets for accessories, 12V/18W LED headlights, polyurethane powder paint, 2" front and rear receiver hitch, poly dump bed standard, bench seating, welded steel frame. Complete weather-sealed wiring connections. A wide selection of additional accessories is available, along with three bed options. Fuel gauge located underside of bed. In-dash, hour/volt meter standard.
VEHICLE PACKAGES
Standard // Powersteering // Sport // Trail // Untamed
UNTAMED
UNTAMED GREEN
Split Windshield, Winch, Camo Hood, Front Rack, Roof, Gun Rack, CV Guards, USB Port, HD Bumper, Custom Paint, Center Console with Lock, Front LED Light Bar
UNTAMED TAN
Split Windshield, Winch, Camo Hood, Front Rack, Roof, Gun Rack, CV Guards, USB Port, HD Bumper, Custom Paint, Center Console with Lock, Front LED Light Bar
VEHICLE PACKAGES
TRAIL PACKAGE
Winch, Roof, Split Windshield, CV Guards, USB Port, Upgraded Bumper, Center Console with Lock
CRUISER CLASSIC
Roof, Split Windshield, Side Mirrors, Rear Mirrors, 25" Premium Road & Turf, Center Console with Lock, USB Port
SHOCKS
STANDARD SHOCKS
Bed Payload 500lbs
HEAVY DUTY SHOCKS
(+200lbs) Bed Payload 700lbs
KIT, L5 / L7 / AMP FLIP SEAT SHOCK SET
Only Available With Purchase of Flip Seat
WHEELS / RIMS
8" FRONT / 10" BACK STANDARD TRAIL-RIDER WHEEL PACKAGE (PN: 19031)
Trail riding, off-roading, and hill climbing
8" FRONT / 10" BACK PREMIUM TRAIL-RIDER WHEEL PACKAGE (PN: 17288)
Black and chrome aluminum rims
8" FRONT / 10" BACK STANDARD MAX-TERRAIN WHEEL PACKAGE (PN: 19488)
Ultra-smooth-riding on/off road tires.
8" FRONT / 10" BACK PREMIUM MAX-TERRAIN WHEEL PACKAGE (PN: 19169)
Ultra-smooth-riding on/off road tires.
25" CRUISER DOT TIRES IB 12" FUSION ALLOY WHEELS (PN: 19844)
Gentle on lawns. Smooth on road.
24” TURF & COMMERCIAL TIRES ON 12” STEEL WHEELS (PN: 19793)
Gentle on lawns. Smooth on road.
25" GLADIATOR 8 PLY TIRES ON 12" STEEL WHEELS (PN: CA00057)
8" front / 10" back
25" GLADIATOR 8 PLY TIRES ON 12" STEEL WHEELS (PN: CA00056)
10" front / 10" back
SEAT
STANDARD MARINE GRADE VINYL SEAT
DELUXE UPGRADE SEAT
HOOD COLOR
CAMO HOOD
MIDNIGHT BLUE HOOD
GUN METAL GRAY HOOD
BLACK HOOD
RED HOOD
BLUE HOOD
BUMPER
STANDARD BUMPER
HEAVY-DUTY BUMPER
BED OPTIONS
POLY BED
FLIP SEAT / TAIL GATE
CONVERTIBLE STEEL BED / FLAT BED
ELECTRIC BED OPTIONS
ELECTRIC BED DUMP
LIGHTS & SOUND
FRONT LED LIGHT
STREET LIGHT & HORN PACKAGE
Turn Signals, Horn, Backup Alarm, Tail Lights, Strobe Connect, license plate & bracket
WORK & RIDE LIGHT PACKAGE
Front LED, Dome, & Rear Flood Light
COMMERCIAL SIGNAL PACKAGE
Horn, Strobe, Tail Lights, & Backup Alarm
USB PORT
STROBE
Option for Street Light & Horn Package
2 SPEAKER WET SOUNDS MARINE STEREO SYSTEM
TAIL LIGHT KIT
WINDSHIELDS
POLY CARBONATE SPLIT WINDSHIELD
SINGLE PIECE WINDSHIELD
ROOFS
PLASTIC ROOF
STORAGE & TASK
FRONT RACK
DUAL GUN RACK / TOOL RACK
GRAB HANDLE (SET OF 2)
TOOL CLAMP (SET OF 2)
WINCH - 3,000 LBS. NYLON
CENTER CONSOLE WITH LOCK BOX
STEEL TUNNEL
VEHICLE PROTECTION & ENCLOSURES
FRONT CV GUARD (SET OF 2)
CAB ENCLOSURE
SNOW PLOWS
SNOW PLOW 50" WINCH POWERED
Requires winch. WINCH NOT INCLUDED.
SNOW PLOW 60" WINCH POWERED
Requires winch. WINCH NOT INCLUDED.
SNOW PLOW 50" DUAL ACTUATED
SNOW PLOW 60" DUAL ACTUATED
MIRRORS & SAFETY
SIDE MIRRORS
REAR MIRROR
2 PASSENGER NET KIT
DECALS
ALL-AMERICAN GRAPHIC
https://youtu.be/cN0NEk9QYTM
